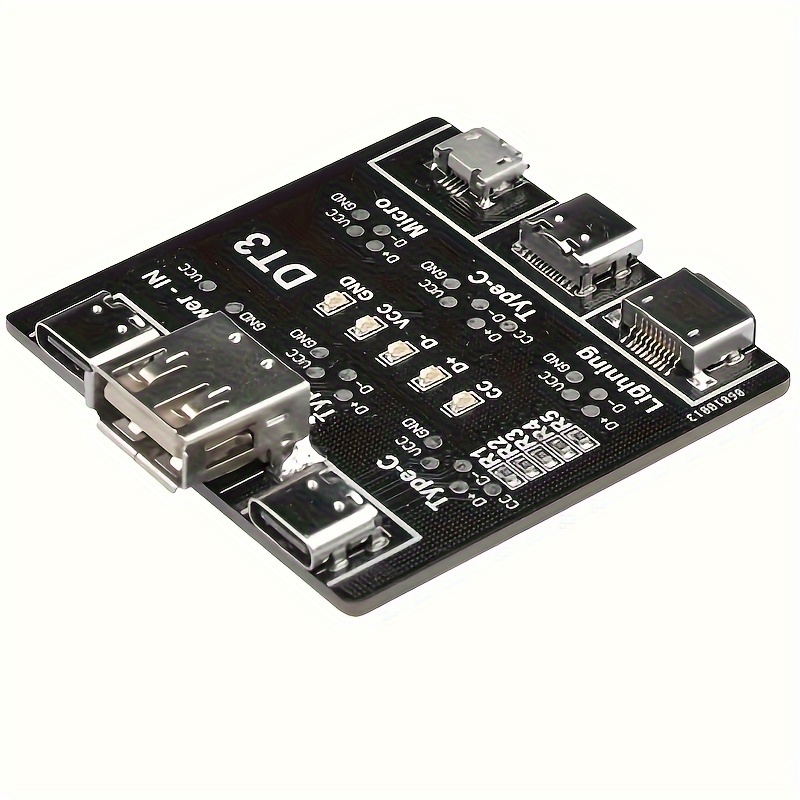

USB Data Test Board Tool Breakout with LEDs DT3 USB-C Lightning Micro-B
Efficient Testing: Detects short circuits and On-Off switching with ease.
Convenient Design: Features a USB cable tester for quick and easy testing.
PCB Construction
Product Description
Features:
1. MULTIPLE PROTECTIONS: USB data cable detection module with multi level protection to ensure the stability and safety of the test.
2. QUICK TESTING: USB data cable detection module is used to quickly detect abnormal data cables and troubleshoot connection problems when using electronic products.
3. VARIOUS APPLICATION: USB cable detection module can be used for iOS, Type C interface and micro interface with high compatibility.
4. SMALL AND PORTABLE: USB data cable detection module is small and exquisite, fast detection, easy to carry, suitable for carrying around.
5. PRACTICAL TOOL: This USB cable detection module can help you quickly determine the fault of your data cable and is very useful.
Specification:
Item Type: Data Cable Detection Board
Material: PCB
Test Interface Type: 3 x Type C, 1 x for iOS, 1 x Micro
Board Size: Approx. 48.5 x 45mm / 1.9x 1.77in
1 x Data Cable Detection Board
Indicator Light Description All 4 indicator lights are on, then the data line is normal (double-head type-c data line requires all 5 indicator lights to be on).If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal. D+ or D- is off, indicating that the data transmission function is abnormal. CC is dedicated to double-head type-c data line detection. When testing other data lines, the light will not turn on.
Scope of Test:
Type-C to Type-C
Type-C to Lighting
USB to Lighting
USB to Type-C
USB to Micro-B
Only Connect use power supply port, the data line input port and the data line output port. Additional Socket connected will cause test Failures and Errors.
Instruction for use of The Tester
1.Use the type-c charging cable to plug into the power supply port to power the small board.
2.Plug the data cable that needs to be detected, plug one end of the charger, and insert it into the corresponding output port.
3.Plug the data cable into one end of the phone and in to the corresponding input port.
4.Observe the light on: VCC and GND are off: the data cable is abnormal D+ or D- is off: the data transmission function is abnormal (if VCC and GND are on, it is a charging cable without data transmission function)
Double head type-c data line detection: CC light: It is specially used for the detection of double-headed type-c data line. If it is not on, it is abnormal. When detecting other data lines, the light will not activate.
