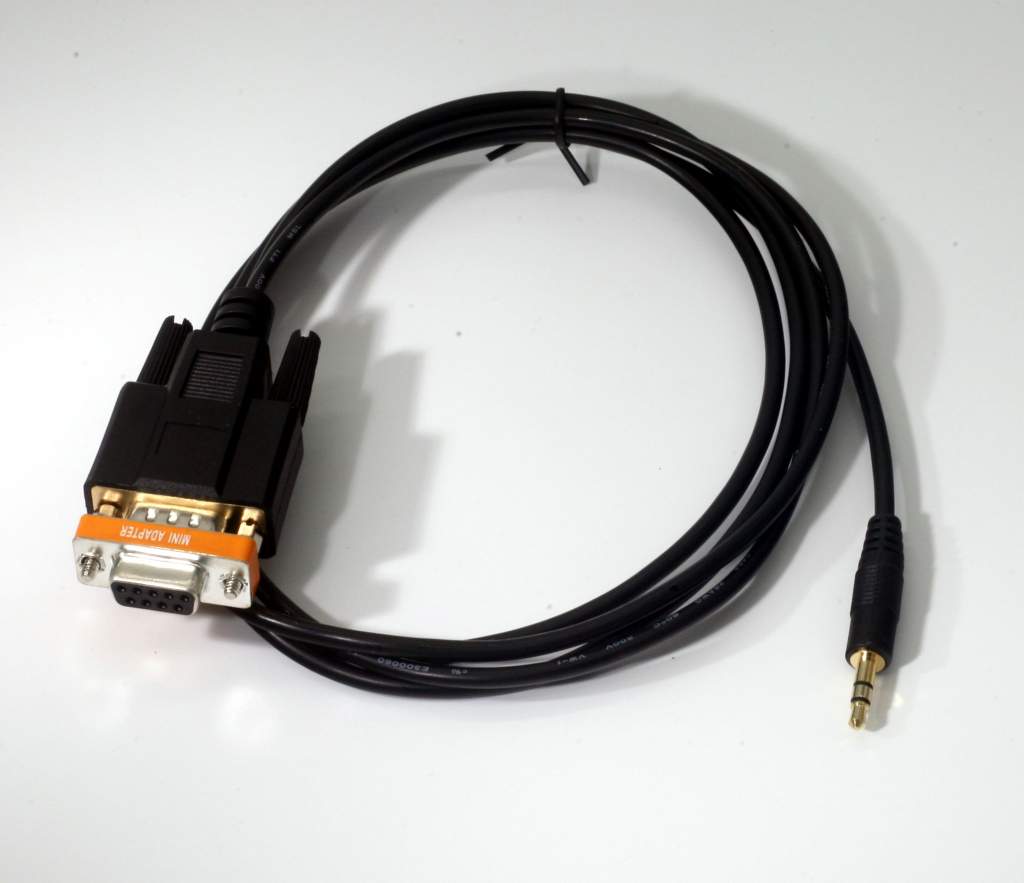

Serial Cable DB9F to 3.5mm DCS4 TAKE CONTROL 4 Null Adapter Kit

6 Foot DB9-Female to 3.5mm TRS Connector Male

Generic Serial Transfer Cable For Devices
Stereo 3.5 mm Jack.
to DB9-F Serial Port.
Primarily used to transfer Serial Data back and forth from Small devices.


Use included Null M-F adapter to Reverse Pins 2 and 3.
Wiring Schematic

DB9           TRS Connector 3.5mm (With Null Adapter)
Pin 1-6-7-8
Pin 2         Ring - Right
Pin 3         Tip  - Left
Pin 4
Pin 5         Sleeve - Shield - Ground
Pin 9
Shell         Sleeve - Shield - Ground
