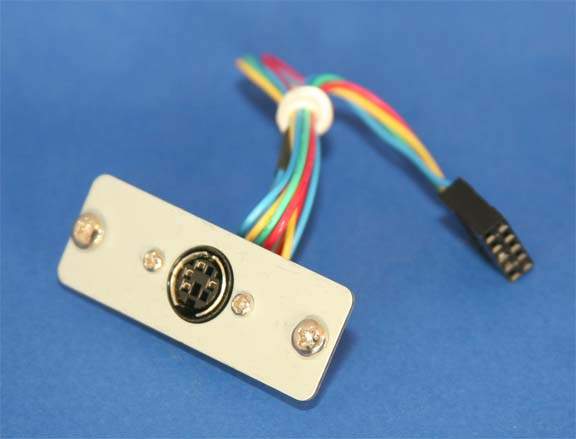

PS2 Mouse PORT to MB 2x5

Cable used to allow usage of a PS/2 mouse. On the special 10 pin connector on main board. This connector is 2 rows with 5 pins
Used on various mainboards/ Motherboards.
Very Popular on SHUTTLE Motherboards

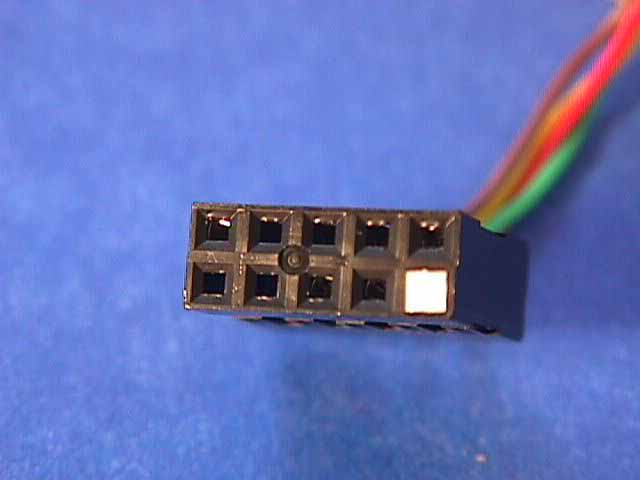

10-Pin Connector Wire Layout
PIN.........SIGNAL............COLOR...|...PIN.........SIGNAL............COLOR
Pin 1.......Mouse Clock.......Green...|...Pin 2.......Open..............Open
Pin 3.......Reserved..........Open....|...Pin 4.......Ground............Red
Pin 5.......Reserved..........Open....|...Pin 6.......+5V...............Yellow
Pin 7.......Reserved..........Open....|...Pin 8.......Reserved..........Open
Pin 9.......Mouse Data........Brn/Blue|...Pin 10......Reserved..........Open

Old Part Number 000-PS2KY-SHT
