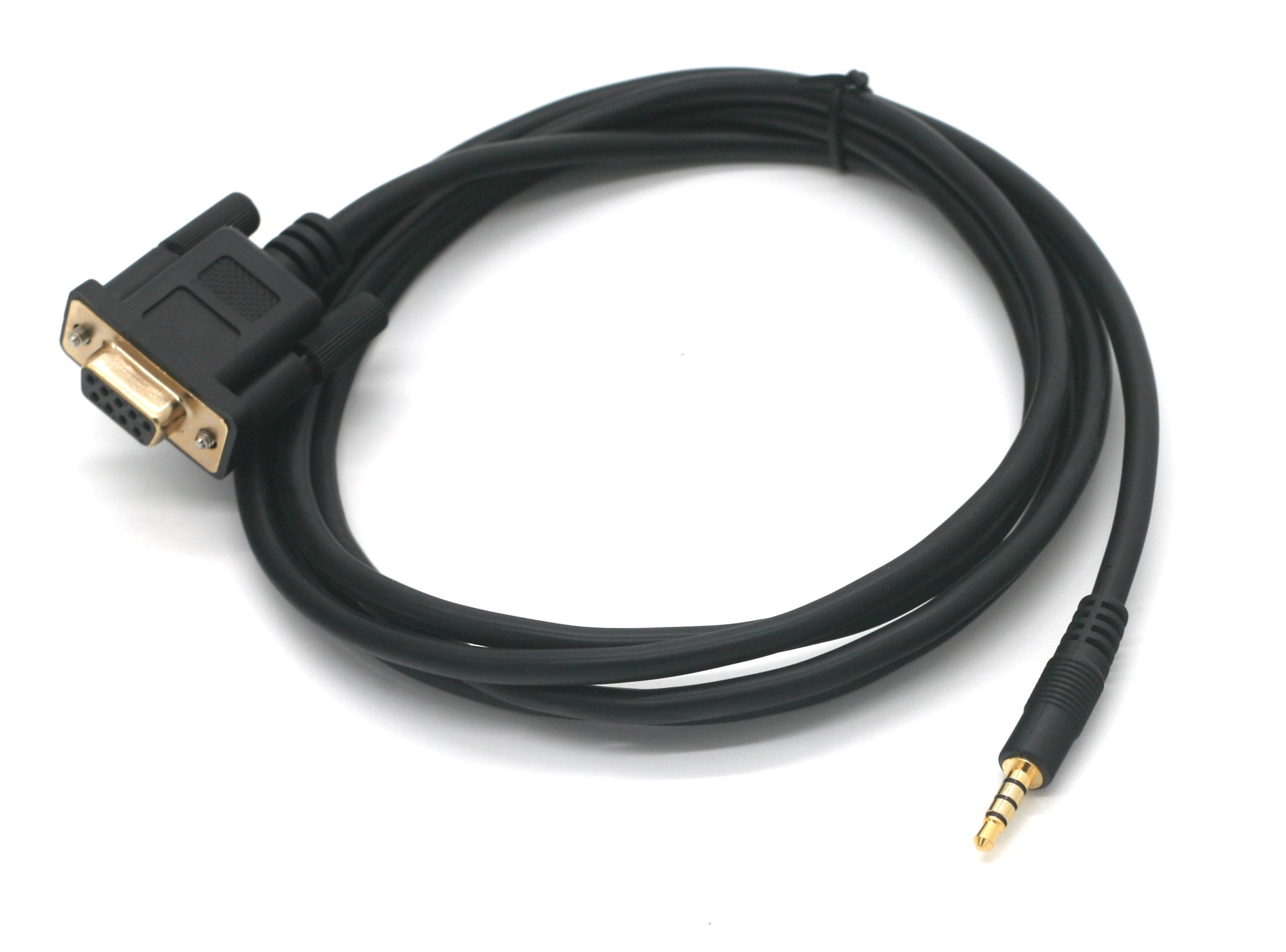

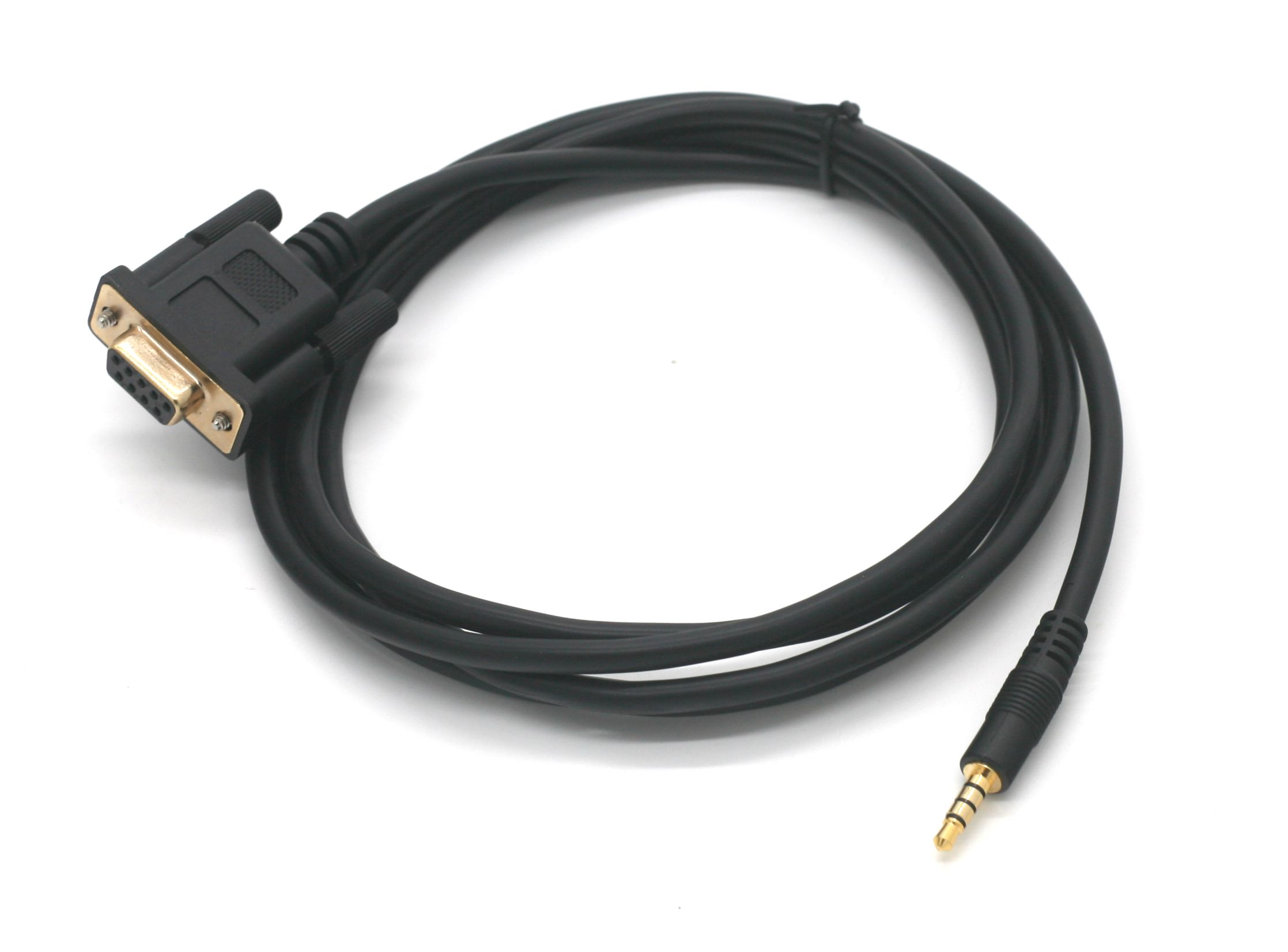

DB9 Female to 3.5mm TRRS Serial Cable 6FT LG EAD-62707901

87064

LG TV Programming Cable 6FT DB9-Female to 3.5mm TRRS Connector Male

Serial Transfer Communication Devices to Program LG TVs
TRRS 3.5 mm Jack.
DB9-F Serial Port.
DB9_Female_Connector
TRRS_Connector
Wiring Schematic
DB9-F         TRRS Connector 3.5mm           Signal
Pin 1
Pin 2         Ring Pin-3                    Transmit Data
Pin 3         Tip Pin-1                     Receive Data
Pin 4         Ring Pin-2
Pin 5         Sleeve Pin-4                  Ground
Pin 6
Pin 7
Pin 8
Pin 9
Shell                                      Foil Shield
Layout of TRRS.
SLEEVE(GROUND),RING,RING,TIP
Premium Cable LG EAD-62707901
Part # 87064
$5.95
Quantity
In Stock

QTY DISCOUNT PRICING
1-910-99100-999
$5.95$5.75$5.55

Certifications:

RoHS Certificate ROHS3 ComplianceReach 224 Compliance
UPC:820799870642
This DB9 Female to 3.5mm TRRS Serial Cable 6FT LG EAD-62707901 is a must-have for Office and Home Usage. It works seamlessly and the sound quality is great.

LG® Tv :

  1. LG TV
