USB PORT DUAL to MAINBOARD PORT Universal 30in

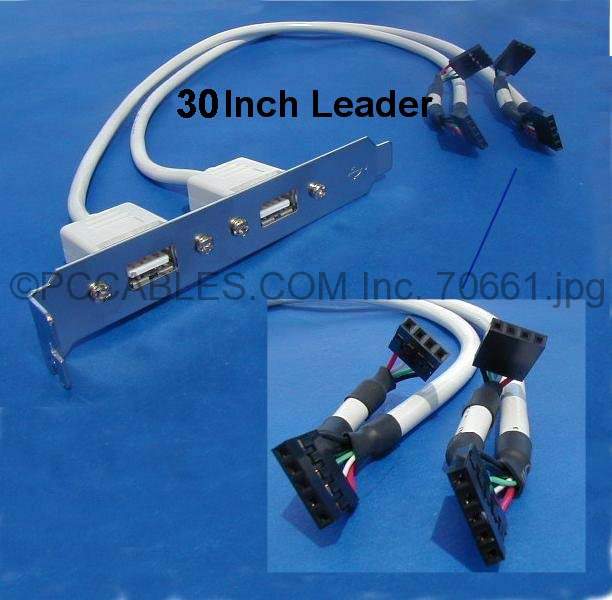

Dual Port USB (Universal Serial Bus) 30 Inch

Cables and Backplate from motherboard to back of case. Allowing External connection of USB 2 (two) TYPE A connectors. Two sets of 5 pin row connectors to connect to main board.
Two sets of 4 pin row connectors to connect to main board.
Extra Long 30 Inch Leader.

---

Each Port can be connected to only one 1x5 or 1x4
The other connector must be left free.

Cable Pin Out
USB Port-1
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground

USB Port-2
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
