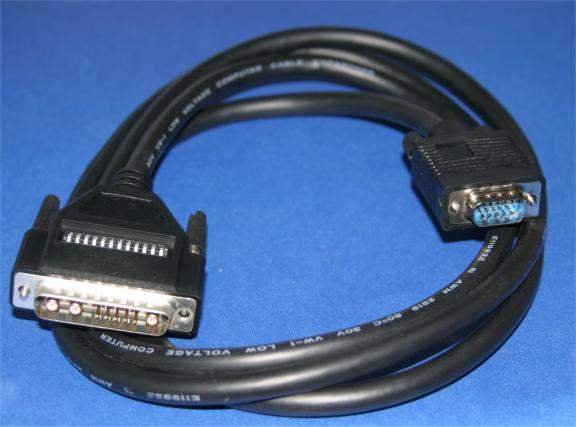

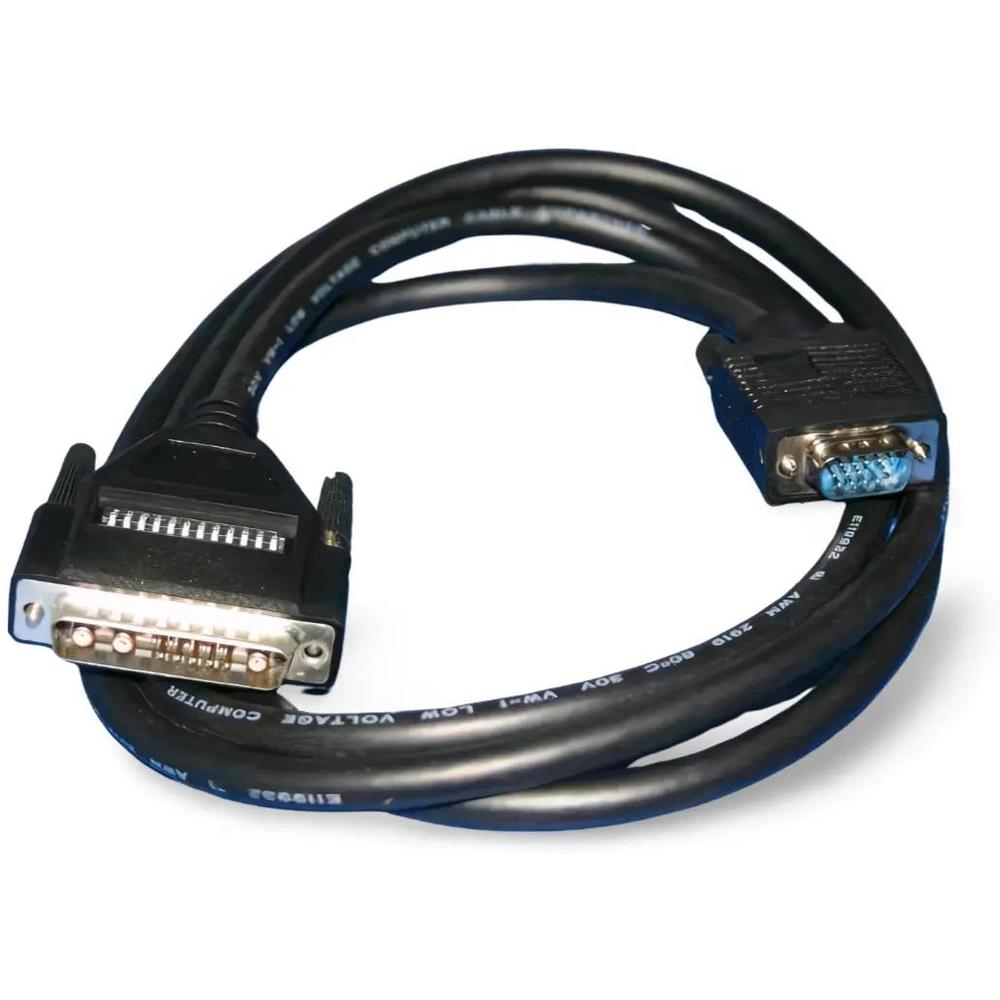

13W3-M to VGA HD15-M 6FT Universal Monitor Cable

00633
Cable has 13w3 Male connector on One side and High Density 15 Male Connector on other.
Cable Length 6'.

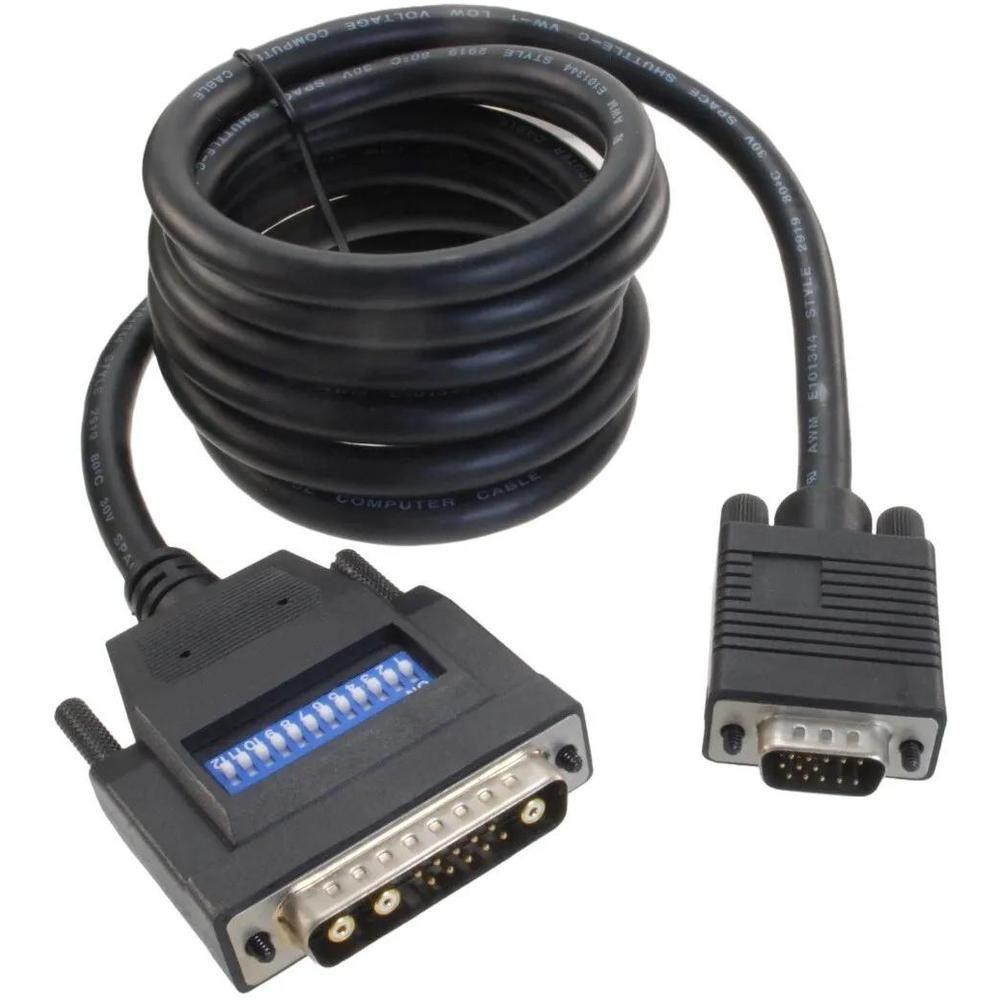

This Cable has switch setting to setup for assorted types.
and Mode ID Bits.
Sun Workstation Settings
IBM Power PC Settings
SGI Computer Composite Sync
SGI HV SYNC Out
SGI SYNC On Green OUT
Used to connect some high end monitors to video Cards.
Used to Connect high end Sun/SGI/IBM Power PC Systems to Multisync Monitors.

Dip Switch Settings.
Computer Type SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW 7 SW 8 SW 9 SW 10 SW 11 SW 12
      Sense 2     Sense 1 Sense 0 GND   SYNC
Sun Workstation OFF OFF ON OFF OFF OFF ON OFF ON OFF ON OFF ON OFF OFF
  ID BIT 2 ID BIT 3 SELF TEST ID BIT 0 ID BIT 1   VERT. SYNC     HOR. SYNC
IBM Power PC OFF OFF OFF OFF OFF OFF ON ON OFF ON OFF OFF
  MON TYPE 3 MON TYPE 0 HOR. SYNC MON TYPE 1 MON TYPE 2 GND GND   HOR. SYNC   VERT. SYNC COMP. SYNC
SGI COMP. SYNC OUT ON OFF ON OFF OFF ON OFF ON OFF ON OFF OFF OFF OFF OFF ON
SGI HV. SYNC OUT ON OFF ON OFF OFF ON OFF ON OFF ON OFF OFF ON OFF ON OFF
SGI SYNC ON GREEN OUT ON OFF ON OFF OFF ON OFF ON OFF ON OFF OFF OFF OFF OFF OFF
Part # 00633
$49.95
Quantity
Low Stock

QTY DISCOUNT PRICING
1-910-99100-999
$49.95$48.95$47.95

Certifications:

ROHS3 ComplianceReach 233 Compliance
UPC:820799006331
