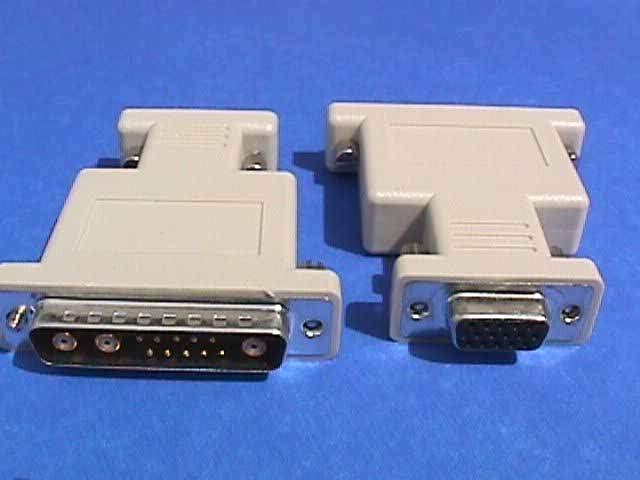

13W3-M to VGA HD15-F Adapter Vertical Horizontal Sync

Includes Horizontal and Vertical Sync
A very special adapter to change 13w3 to a High Density 15 Connector.

---

GDM 20E20 (Sun GDM20E20)
GDM 20E21 (Sun GDM20E21)
WS9702-00 Sun 365-1335, 1337, 1338, 1339, 1340, 1341, 1342, 1343, 1345
Sony X7101A, NCC477L, X268A, GDM17E20, X267A, GDM20E20
Any other Multi Sync monitors with Horizontal (Pin 5 to 13) and Vertical Sync (Pin 7 to 14)

---

Adapter Wiring

HDDB15-F                  13W3-M
Pin                     Pin
1                       A1-Conductor
2                       A2-Conductor
3                       A3-Conductor
5                       Pin 4 + 9 in Block
6                       A1-Ground
7                       A2-Ground
8                       A3-Ground
10			Pin 10 in Block
12			Pin 6 in Block
13                      Pin 5 in Block
14			Pin 7 in Block
15			Pin 1 in Block
Ground			Ground

---
